  2022-03-14
~~沃肯科技新品上市~~ 18GHz SMA SPDT Multiple Port RF Switch Box
(程式控制切換器)


歷經沃肯工程團隊多次的反復修改與測試調整…引頸期盼的新產品終於上市囉!!!

簡易的操作方式,解決了您找尋自製控制板及供電器的難題….

無論您是要使用在何RF測項上…皆能全面支援您所需求的應用頻段

只需插上電源線就可輕鬆的使用操作

如下提供了該款產品的各項優勢…沃肯非常歡迎您的借測與詢價…^^



  Coaxial Switch


WOKEN
0169A00180001W

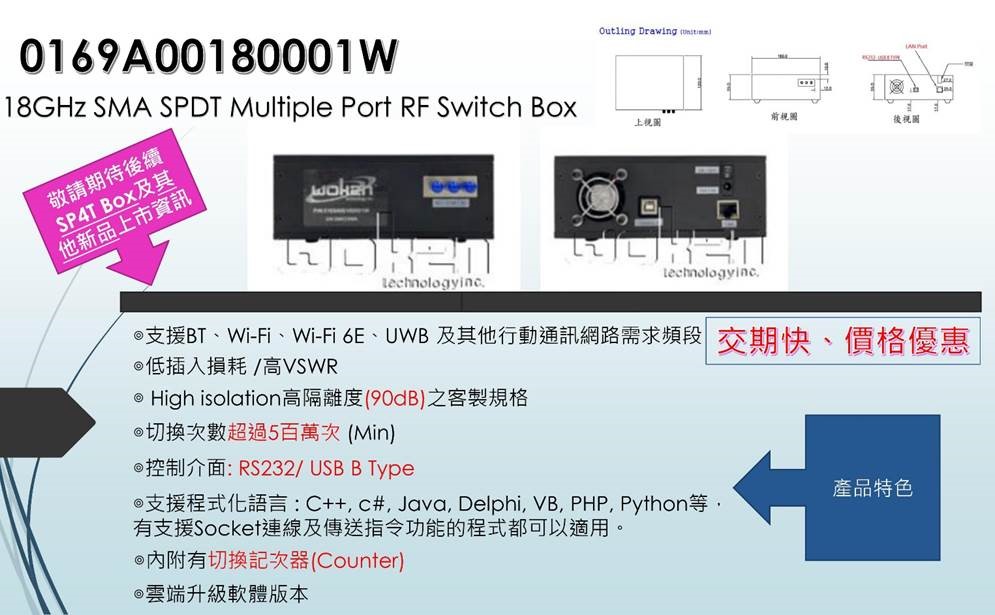

18GHz SMA SPDT Multiple Port RF Switch Box
Specification:
Frequency:18GHz
VSWR:1.1:1(Max.)@DC-1GHz
1.2:1(Max.)@1-12GHz
1.3:1(Max.)@12-18GHz
Insertion Loss:0.1dB(Max.)@DC-1GHz
0.15dB(Max.)@1-12GHz
0.25dB(Max.)@12-18GHz
Isolation:90dB(Min.)@DC-1GHz
80dB(Min.)@1-12GHz
70dB(Min.)@12-18GHz
Operating Life:5,000,000 Cycles



Request piece
