  2022-08-02
手/自動程控測試切換器SP4T Multiple Switch box

本期推薦您的是手/自動SP4T Multiple Switch box

節省測試時間是您選擇Switch box的原因

而沃肯全新的手自動SP4T Box可以讓您的測試流程大幅度簡化

即時近端手動及遠端程控都能隨時自由切換的設計,讓儀器設備idle不再複雜

附加的Reset功能可以支援障礙重置,故障排除變得十分簡易

業界首創的計次器功能,增加並確保測試的可靠性

簡潔清晰的面板設計,簡單且易於操作軟體的使用介面

還有工程師可以迅速的為您處理軟體相關問題

實際應用於WiFi 7 及5G NR上深受客戶好評

沃肯附有詳細的使用手冊和影片

歡迎隨時聯絡專屬業務取得更詳細的資訊~

介紹影片可點選下方連結觀賞:

https://fb.watch/eu_9BkshNF/



  Coaxial Switch


WOKEN
0169A00180003W

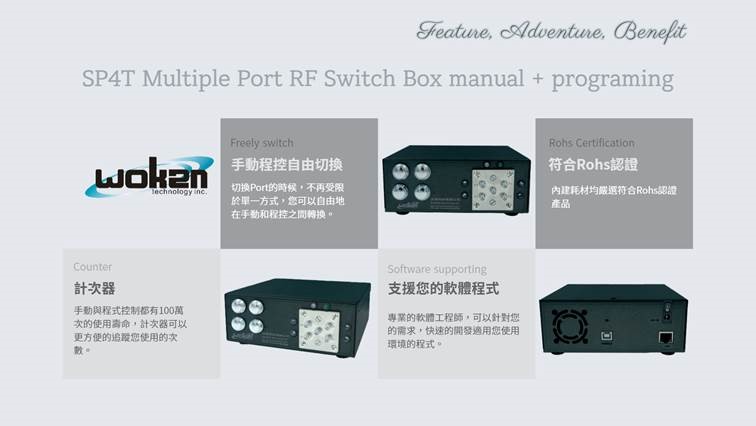

18GHz SMA SP4T Multiple Port RF Switch Box manual + programing
Specification:
Frequency:18GHz
VSWR:1.3:1(Max.)@DC-8GHz
1.4:1(Max.)@8-12GHz
1.5:1(Max.)@12-18GHz
Insertion Loss:0.3dB(Max.)@DC-8GHz
0.4dB(Max.)@8-12GHz
0.5dB(Max.)@12-18GHz
Isolation:80dB(Min.)@DC-8GHz
70dB(Min.)@8-18GHz
Operating Life:1,000,000 Cycles
